Fetch Data

Overview

Fetch Data retrieves previously stored data from persistent storage that was saved using the Save Data stage. Use this stage to load user sessions, cached API responses, configuration settings, or any data saved earlier in your flows.

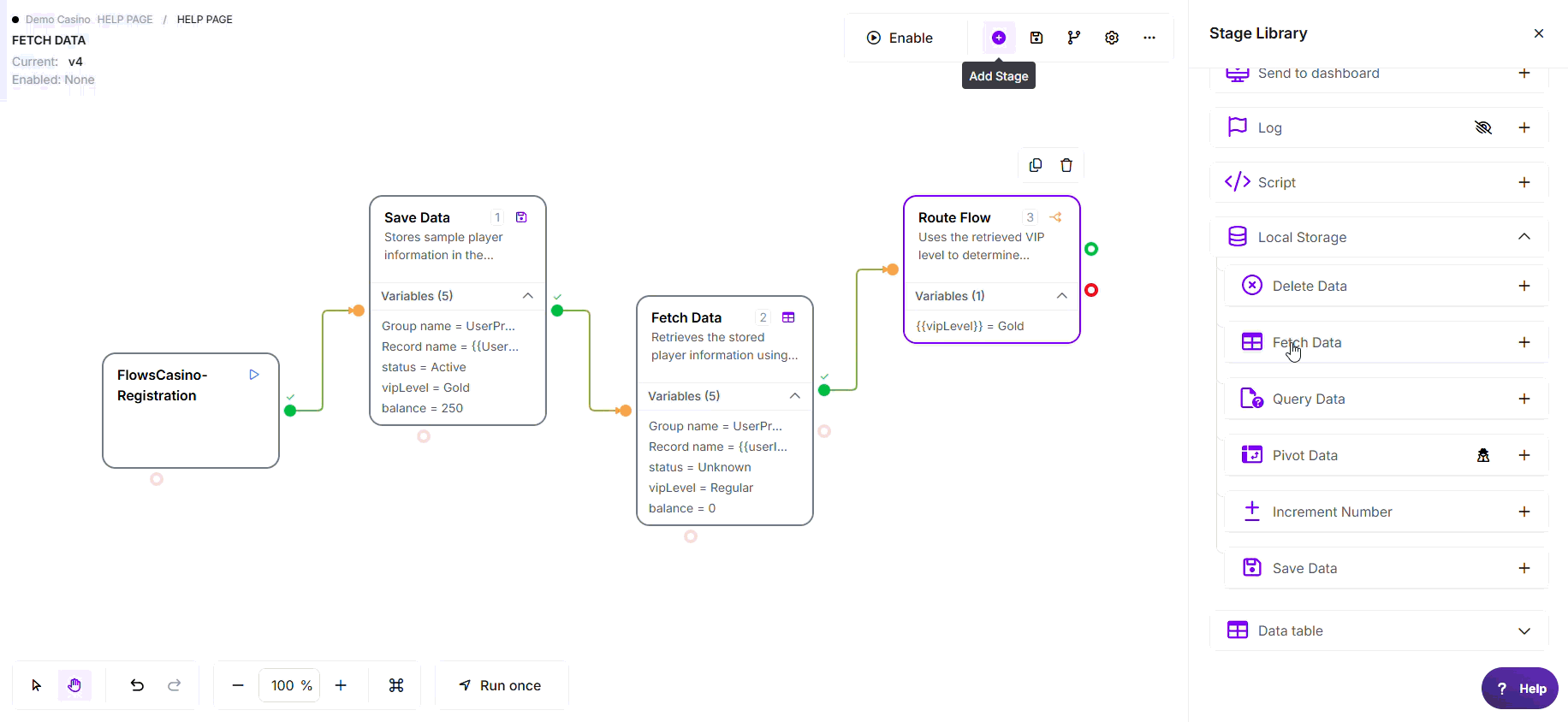

* Example flow demonstrating how Save Data stores player information and how Fetch Data retrieves the stored values using the player's {{userId}}. If a requested key is not found, the configured default value is used instead.

Note: The variable names, values, criteria, and configuration used in this example are for demonstration purposes only.

Configuration

Required Fields

Optional Fields

• Record name: The sub-grouping within the group name. If data was saved with a record name, you must provide it to retrieve. If omitted, fetches from the default record.

Using functions in these fields: Any value field above accepts @ functions, for example @NowSecond for the current time or @calc(...) for a calculation.

See Flows Functions for the full list.

Exit Points

Important: This stage does NOT have a Fail exit. Missing data uses default values and routes to Pass.

How It Works

When executed, the stage:

1. Resolves configuration - Evaluates group name, record name, and key names from variables
2. Checks cache - If caching enabled, checks for cached values first (skips database if all keys found)
3. Fetches from database - Retrieves all data for the group+record combination in a single query
4. Loads into variables - Extracts requested keys and makes them available as flow variables (uses defaults for missing keys)

Accessing Retrieved Data

After the stage executes, each fetched key becomes available as a flow variable:

Example:

• Fetch key named email
• Use it as {{email}} in subsequent stages
• No prefix needed - use the key name directly

Common Use Cases

1. Retrieve User Session

Load user session data saved at login.

• Group name: userSessions
• Record name: {{userId}}
• Keys:
  • loginTime - Default: not_found
  • ipAddress - Default: unknown
  • userEmail - Default: no_email

2. Load Cached API Data

Retrieve cached API response to avoid external call.

• Group name: apiCache
• Record name: productData
• Keys:
  • products - Default: [] (empty array)
  • fetchedAt - Default: never

3. Restore Multi-Step Form

Load partial form data when user returns to complete submission.

• Group name: formSubmissions
• Record name: {{sessionId}}
• Keys:
  • step1_personalInfo - Default: {}
  • step2_address - Default: {}
  • status - Default: new

4. Check Counter Value

Retrieve current counter to determine if limit reached.

• Group name: counters
• Keys:
  • orderCount - Default: 0
  • lastUpdated - Default: never

Key Behaviors

Cache Optimization

Prefix the group name with cache(ttl):: to enable caching:

Example: cache(60)::userSessions

This will:

• Check local cache before querying database
• If ALL requested keys found in cache, skip database query entirely
• If ANY key missing from cache, fetch ALL from database and update cache
• Cache expires after specified TTL (in seconds)

Detecting Missing Data

Since there's no Fail exit, use Route Flow to detect if data was actually found:

Example:

• Fetch key email with default not_found
• Use Route Flow to check: {{email}} equals not_found
• If true, data doesn't exist; if false, data was found

Best Practices

• ✓ Always provide meaningful defaults (not just empty strings)
• ✓ Match group/record/key names exactly with your Save Data stage
• ✓ Fetch all related keys together (single database query is more efficient)
• ✓ Use Route Flow after Fetch to compare against defaults and detect if data was found
• ✓ Connect Error exit to handle database connection failures
• ✓ Use descriptive key names that make it clear what data is being fetched
• ✓ Document your storage schema (which groups, records, and keys are used where)
• ✓ Consider TTL expiration timing - expired data treated as missing

Common Mistakes

Troubleshooting

Edge Cases

• Partial Data Retrieval: If fetching 5 keys and only 3 exist, the 3 found keys get database values and 2 missing keys get default values. Stage routes to Pass (not Error).
• Expired Data: Expired keys treated as "never existed" - default value used. No way to distinguish "expired" from "never saved".
• Empty Group/Record: Non-existent group or record returns empty data - all keys use defaults and stage routes to Pass.
• Caching All-or-Nothing: If ANY requested key missing from cache, fetches ALL from database (no partial cache hits).
• No Multi-Record Fetch: One fetch operation retrieves from one group+record combination. To fetch from multiple records, use multiple Fetch Data stages or Loop.

Related Stages

• Save Data: Store data that this stage retrieves
• Delete Data: Remove stored data when no longer needed
• Increment Number: Safely update numeric values in storage
• Query Data: Search stored data based on conditions
• Route Flow: Make decisions based on fetched values (compare against defaults)
• Change Data: Process or validate fetched values before using them
