Loop

Overview

Iterates through each item in an array, executing a set of stages for every element in the collection.

IMPORTANT: The fields do not contain {{}} just plain text as it is an Array. When specifying the Items to Loop On field, use the plain variable name (e.g., customers) rather than the variable reference syntax (e.g., {{customers}}).

When to Use

Process each item in a list of records
Send emails to multiple recipients
Update multiple database records
Transform array data item by item
Perform calculations on each element
Make API calls for each item in a collection
Generate reports for multiple entities

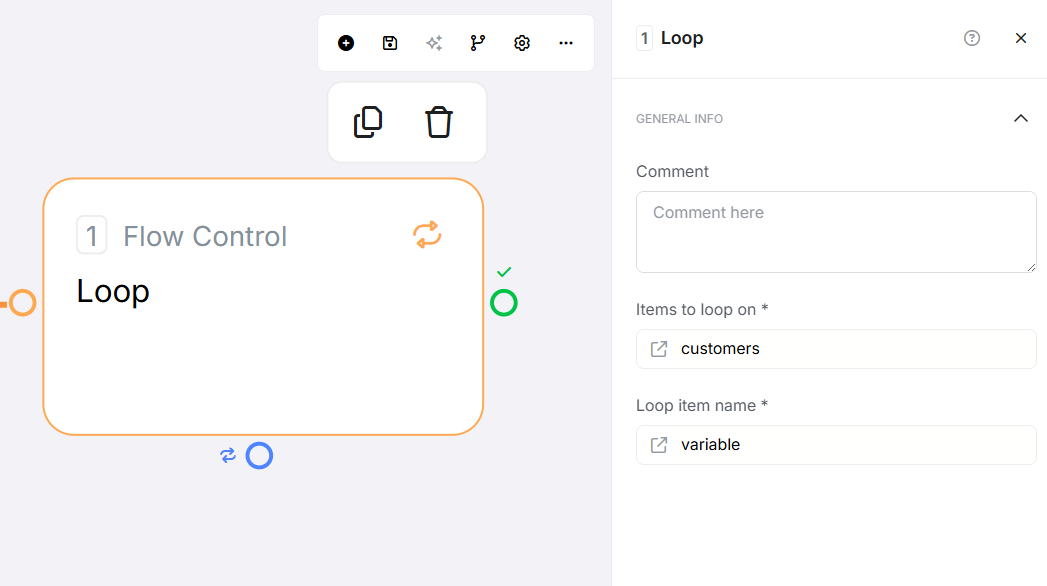

Configuration

Fields Reference

Field	Type	Required	Description	Example
Items to Loop On	Array	Yes	Array variable containing items to iterate (use plain variable name, not {{}} syntax)	customers, orderItems, emailList
Loop Item Name	String	Yes	Variable name for the current item during each iteration (default: variable)	customer, order, item

Critical Note: When configuring Items to Loop On, enter the plain variable name without {{}} brackets. The system treats this as an array reference.

Exit Points

Exit	When	Purpose
Iterate	Executes for each item in the array	✓ Connect stages that run once per array element
Pass	After all items have been processed	✓ Flow continues after loop completes

How It Works

When executed, the stage:

Parses the Array - Converts items into a processable collection
Iterates Sequentially - Processes items one at a time (not parallel)
Sets Current Item - Makes item available via Loop Item Name variable
Executes Iterate Path - Runs connected stages for current item
Waits for Completion - Finishes iteration before moving to next item
Repeats - Continues until all items processed
Exits via Pass - After all iterations complete

Item Access Patterns

Item Type	How to Access	Example
Primitive (string, number)	Use {{variable}} directly	{{variable}} if item is a simple ID
JSON Object	Use dot notation for fields	{{variable.userid}}, {{variable.email}}
Nested Object	Chain dot notation	{{variable.address.userid}}

Common Use Cases

1. Send Email to Multiple Recipients

Items to Loop On: customers
Loop Item Name: customer
Iterate Path: Call API to send email with {{variable.email}} and {{variable.userid}}

2. Calculate Totals

Items to Loop On: cartItems
Loop Item Name: item
Iterate Path: Increment Number with {{variable.price}}
Pass Path: Fetch Data to get final total

Key Behaviors

Feature	Behavior
Processing Order	Sequential (one at a time, not parallel)
Empty Array	Goes directly to Pass exit (no iterations)
Variable Cleanup	Previous item variable removed before loading next item
Debug Limit	Debug output shows first 15 iterations only
Loop Counter	✗ No counter variable exposed to flow
Break Early	✓ Use Stop Loop stage to exit before completion
Nested Loops	✓ Supported (use unique loop item names)

Do's and Don'ts

Do	Don't
✓ Use descriptive loop item names (`customer` better than `item`)	✗ Use generic variable names (makes code unclear)
✓ Connect the Iterate exit to stages that run per item	✗ Try to loop non-array data (ensure input is array)
✓ Connect the Pass exit to continue after loop	✗ Create infinite loops (ensure iterate path completes)
✓ Keep iterations simple to avoid timeouts	✗ Access wrong variable (use `customer`, not `customers`)
✓ Handle errors within iterations using error exits	✗ Modify the source array during iteration
✓ Use Stop Loop to break out early when needed	✗ Forget to connect exits (both required)
✓ Test with small arrays first before large datasets	✗ Assume arrays always have items (handle empty case)
✓ Use unique names for nested loops	✗ Use same variable name in nested loops (causes conflicts)

Troubleshooting

Issue	Common Cause	Fix
Loop doesn't execute, goes straight to Pass	Iterate exit not connected	Always connect Iterate exit to stages you want to run for each item
Flow stops after loop completes	Pass exit not connected	Connect Pass exit to continue flow after all iterations complete
Variables from loop items not accessible	Using wrong variable name	Use loop item name `customer`, not array name `customers` within iterations
Loop processes wrong data	Passing single object instead of array	Ensure loop input is actually an array/list; verify source variable contains array
Loop never completes	Iterate path doesn't return to loop	Ensure iterate path eventually completes and returns control for next item
Cannot access nested object fields	Not using dot notation	Access nested fields with dot notation: {{customer.address.userid}}
Nested loops overwrite variables	Variable name conflicts between loops	Use unique, clear names for each loop level ({{customer.name}} and {{variable.name}})
Stage errors not handled in loop	No error exits on iterate stages	Add error exits on stages within iterate path to handle failures gracefully
Loop parsing fails (Error exit)	Invalid JSON in array variable	Verify array variable contains valid JSON array format; check source data
Debug output stops after 15 items	Debug mode iteration limit	Normal behavior; loop continues processing all items, just stops logging after 15th

Edge Cases

Empty Array

Loop body never executes. Goes directly to Pass exit. This is normal behavior, not an error. Ensure Pass exit is connected to handle zero-iteration scenario.

Single Item Array

Iterates exactly once, then exits via Pass. No special handling required.

Null Items in Array

If array contains null items, they're stored as null in dictionary. Loop doesn't skip nulls automatically. Downstream stages must handle null values.

Breaking Out Early

Use Stop Loop stage to exit before all items processed. After break, goes to Pass exit (not a different exit).

Very Large Arrays (10,000+ items)

No explicit limit enforced. Performance scales linearly with array size. Consider flow timeout settings. Debug output capped at 15 iterations to avoid performance issues.

Nested Arrays

If array item is itself an array, nest another Loop stage inside to iterate nested arrays. Parent loop provides context for child loop.

Related Stages

Stop Loop: Exit a loop early when a condition is met
Route Flow: Make decisions within each iteration
Change Data: Transform data during each iteration
Save Data: Store results from each iteration
Call API: Make API calls for each item
Loop Async: Process items asynchronously for better performance
