Increment Number

Overview

Increment Number safely increments numeric values in persistent storage, ensuring atomic operations to prevent race conditions during concurrent access. This stage is designed specifically for counters and numeric values that need reliable, concurrent updates.

Use this stage when you need to maintain running counters, track totals across multiple flow executions, or implement any numeric aggregation where concurrent access is possible.

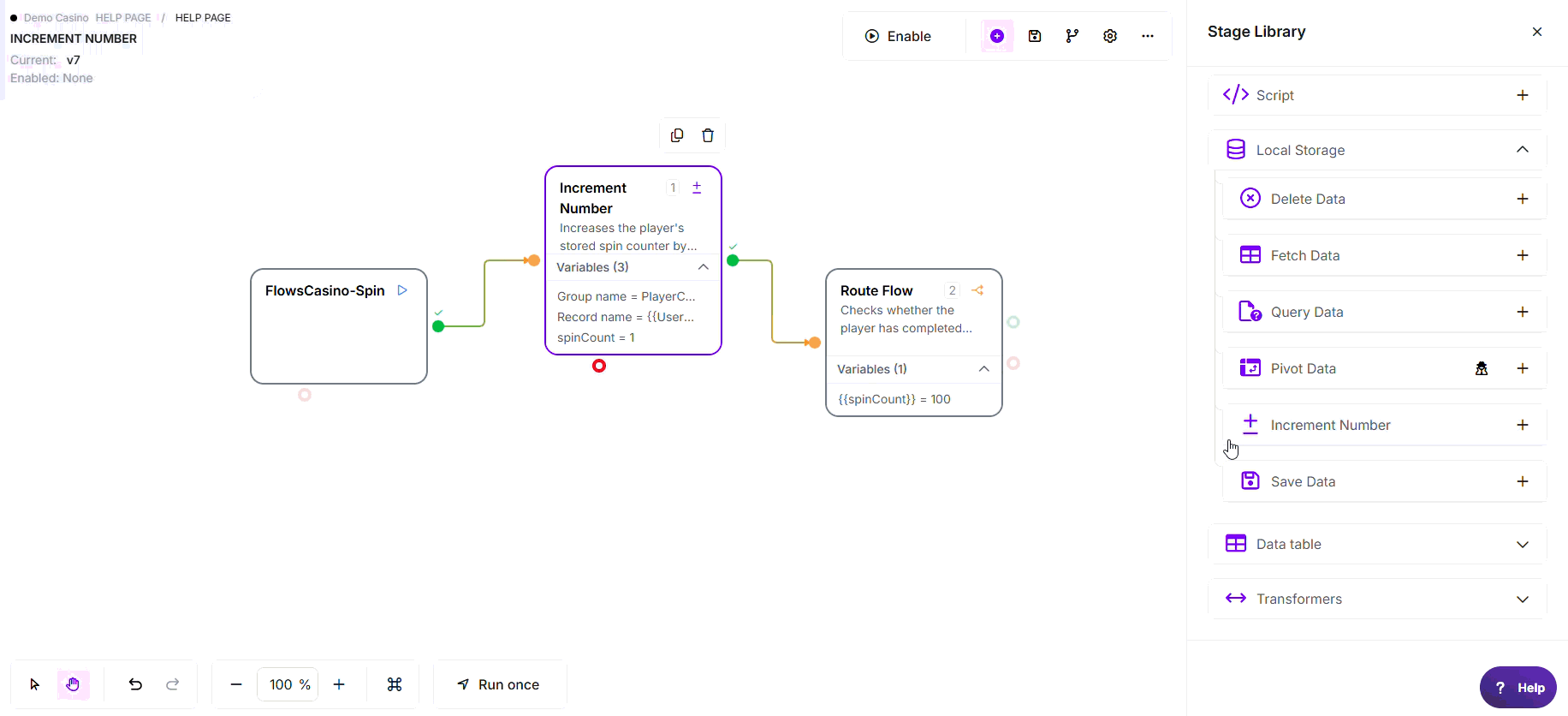

* Example flow demonstrating how Increment Number maintains a persistent spin counter for each player and immediately uses the updated value to determine whether the player has completed more than 100 spins.

Note: The variable names, values, criteria, and configuration used in this example are for demonstration purposes only.

Where to find it: Actions > Local Storage in the stage library.

Configuration

Required Fields

Field	Description	Example
Group name	The organizational namespace for your counter data	`counters`, `orderSequence`
Key (Name)	The identifier for the counter to increment	`orderCount`, `totalRevenue`
Value to Increment	The amount to add to the counter (can be positive or negative). The value is always treated as a number; there is no decimal formatter, so a fractional result may display differently than you expect	`1`, `{{itemPrice}}`, `-5`

Optional Fields

Record name: A sub-grouping within the group name for hierarchical organization (e.g., date-based records)
Time to live (minutes): How long to keep the counter before automatic deletion. Use @forever for permanent counters, @1_hour (60 min), @24_hours (1440 min), or a specific number of minutes. Note: entering 0 or a negative number means immediate expiry, NOT forever (this differs from Save Data). Use @forever or leave it empty to keep the counter indefinitely.

Using functions in these fields: Any value field above accepts @ functions, for example @NowSecond for the current time or @calc(...) for a calculation.

See Flows Functions for the full list.

Exit Points

Exit	When
Pass	All counters successfully incremented and stored
Error	A database error (timeout, connection failure, or a rejected write) routes to the Error exit

Detecting a non-change: a call that succeeds but leaves the counter value unchanged still routes to Pass, not Error. If you need to confirm the value actually changed, follow this stage with a Fetch Data stage and check the value.

How It Works

When executed, the stage:

Resolves variables - Evaluates all field values including the increment amount
Performs atomic increment - Uses a read-modify-write operation that prevents race conditions
Creates if needed - If the counter doesn't exist, creates it with the increment value as initial value
Updates dictionary - Adds the NEW counter value to flow variables for immediate use
Resets TTL - Extends the counter's lifetime by the specified TTL value

Common Use Cases

1. Order Counter

Track the total number of orders processed.

Group name: counters
Key: totalOrders
Increment By: 1
Time to live: @forever

2. Daily API Call Tracking

Count API calls per day with automatic expiration.

Group name: apiTracking
Record name: {{currentDate}}
Key: callCount
Increment By: 1
Time to live: @24_hours

3. Revenue Aggregation

Sum total revenue from multiple transactions.

Group name: financials
Keys:
- totalRevenue - Increment by {{orderTotal}}
- transactionCount - Increment by 1
Time to live: @forever

4. Inventory Decrement

Reduce stock levels when items are purchased.

Group name: inventory
Record name: {{productId}}
Key: stockCount
Increment By: -{{quantityPurchased}} (negative value decrements)
Time to live: @forever

5. Rate Limiting

Track API calls per user to enforce limits.

Group name: rateLimits
Record name: {{userId}}
Key: callsThisHour
Increment By: 1
Time to live: 60 (1 hour)

Key Behaviors

Feature	Behavior
Atomic Operations	✓ Each counter increment is atomic - safe for concurrent access
Auto-Creation	✓ Counter created automatically if it doesn't exist
Negative Increments	✓ Use negative values to decrement counters
Multiple Keys	✓ Update multiple counters in one stage
Dictionary Update	✓ New values immediately available in flow variables
TTL Reset	✓ Each increment resets the expiration timer
Cross-Key Transactions	✗ Multiple keys incremented independently (not atomic together)

Why Use Increment Number vs Save Data

Scenario	Increment Number	Save Data
Concurrent updates	✓ Safe - atomic operation	✗ Race conditions - lost updates
Running counters	✓ Designed for this	✗ Manual fetch + save = risk
Non-numeric data	✗ Numbers only	✓ Any data type
Single flow updates	✓ Works but overkill	✓ Simpler for this case

Key rule: If multiple flows might update the same value simultaneously, use Increment Number. Otherwise, Save Data is simpler.

Accessing Incremented Values

After the stage executes, each incremented counter is automatically added to your flow variables with its NEW value:

Example:

Counter orderCount was 10
You increment by 5
{{orderCount}} now contains 15
Use immediately in next stages without fetching

Best Practices

✓ Use Increment Number (not Save Data) whenever multiple flows might update the same counter
✓ Use descriptive group and key names like orderCounts.dailyTotal
✓ Set @forever for permanent counters, time-based TTLs for temporary tracking
✓ Use negative values to decrement instead of fetching and subtracting
✓ Update multiple related counters in one stage to save round trips
✓ Connect the Error exit to handle storage failures with retry logic
✓ Document your counter schema (groups, keys, purposes)

Common Mistakes

Mistake	Symptom	Fix
Using Save Data for counters	Counter values inconsistent, some increments lost	Switch to Increment Number for concurrent-safe updates
Forgetting TTL for temporary data	Counters persist indefinitely, bloat storage	Set appropriate TTL for rate limits, daily counts, session data
Using inconsistent key names	Data scattered across similar-sounding keys	Standardize naming conventions and document them
Not handling Error exit	Flow fails silently when storage unavailable	Connect Error exit to retry logic or alerting
Incrementing by string instead of number	Unexpected behavior or errors	Ensure increment value is numeric or numeric variable
Mixing Save Data and Increment on same key	Counters overwritten unexpectedly	Choose one approach per key - either always Save or always Increment

Troubleshooting

Issue	Exit/Result	Common Cause	Fix
Counter values inconsistent	Pass (but wrong values)	Using Save Data in concurrent scenario instead of Increment Number	Switch to Increment Number for atomic updates
Counters never expire	Pass (but data persists)	TTL not set or set to `@forever`	Set appropriate TTL for temporary counters
Error exit triggered	Error	Storage system unavailable or connection failed	Implement retry logic; check storage system status
Counter starts at wrong value	Pass (but unexpected initial value)	First increment initializes with increment value, not zero	Explicitly save initial value of 0 before first increment if needed
Multiple counters out of sync	Pass (but inconsistent)	Each key incremented independently, not atomically together	Use single composite key if atomicity needed across values

Edge Cases

Counter Doesn't Exist: First increment creates the counter with the increment value as initial value (not zero).
Zero Increment: Incrementing by 0 doesn't change the value but does reset the TTL.
Decimal Increments: Supports fractional values like 2.5 for tracking hours or partial quantities.
Partial Failures: If incrementing 5 keys and key #3 fails, keys #1 and #2 remain incremented (no rollback).
Frequently Incremented Counters: If you increment a counter with a 1-hour TTL every 10 minutes, it never expires (TTL resets on each increment).

Related Stages

Save Data: Store non-numeric data or when atomic increment not needed
Fetch Data: Retrieve current counter values for decision-making
Delete Data: Remove counters from storage
Change Data: Set counter values in flow variables (not persistent storage)
Route Flow: Make decisions based on counter values (e.g., rate limiting)
